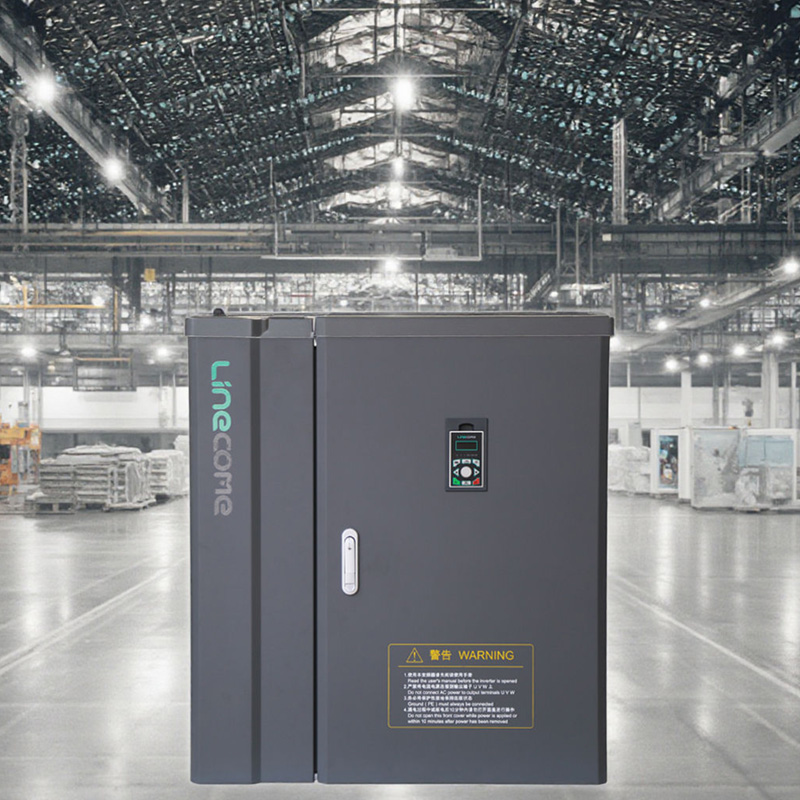

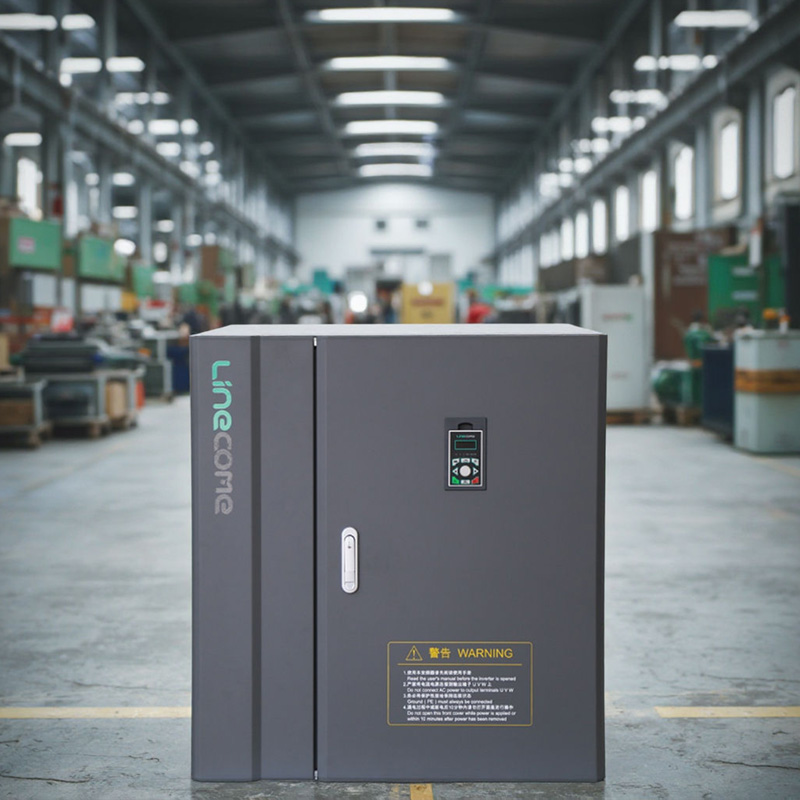

Feature highlights: The LINECOME Vector Frequency Converter (Model LNC860S-4T3550G) delivers robust performance with a power range of 355kW, supporting three-phase 380V input output. It ensures precise motor speed control and is ideal for industrial applications like CNC routers, pumps, and compressors. The product features an IP20 protection level, LED display, and is CE certified, ensuring compliance with EU safety standards and enabling market access.
Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 355KW |
| Nominal Voltage | 380V | Number of Phases | Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC860S-4T3550G/4T4000P | Type | frequency converter, VFD |
| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 862*750*455mm |
| IP Rating | IP20 | Installation Dimensions | 500*832mm |
| Weight | 145.5kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |
| Name | Vector Frequency Converter |
| Model | LNC860S-4T3550G/4T4000P |
| Brand | LINECOME |
| Material | Iron Shell |
| Color | Grey |
| Power Range | 355kW |
| Input Voltage | Three phase 380V |
| Output Voltage | Three phase 380V |
| Output frequency | 0-500Hz |
| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC860S-2S0007GB/2S0015PB | Single Phase 220V±15% /Three Phase 220V±15% | 0.75 | 8.2 | 4 |
| LNC860S-2S0015GB/2S0022PB | 1.5 | 14 | 7 | |
| LNC860S-2S0022GB/2S0040PB | 2.2 | 23 | 9.6 | |
| LNC860S-4T0007GB/4T0015PB | Three Phase 380V±15% /Three Phase 380V±15% | 0.75 | 3.4 | 2.1 |
| LNC860S-4T0015GB/4T0022PB | 1.5 | 5 | 3.8 | |
| LNC860S-4T0022GB/4T0040PB | 2.2 | 5.8 | 5.1 | |
| LNC860S-4T0040GB/4T0055PB | 4 | 10 | 9 | |
| LNC860S-4T0055GB/4T0075PB | 5.5 | 15 | 13 | |
| LNC860S-4T0075GB/4T0110PB | 7.5 | 20 | 17 | |
| LNC860S-4T0110GB/4T0150PB | 11 | 26 | 25 | |
| LNC860S-4T0150GB/4T0185PB | 15 | 35 | 32 | |
| LNC860S-4T0185GB/4T0220PB | 18.5 | 38 | 37 | |
| LNC860S-4T0220GB/4T0300PB | 22 | 46 | 45 | |
| LNC860S-4T0300G/4T0370P | 30 | 62 | 60 | |
| LNC860S-4T0370G/4T0450P | 37 | 76 | 75 | |
| LNC860S-4T0450G/4T0550P | 45 | 92 | 91 | |
| LNC860S-4T0550G/4T0750P | 55 | 113 | 112 | |
| LNC860S-4T0750G/4T0900P | 75 | 157 | 150 | |
| LNC860S-4T0900G/4T1100P | 90 | 180 | 176 | |
| LNC860S-4T1100G/4T1320P | 110 | 214 | 210 | |
| LNC860S-4T1320G/4T1600P | 132 | 256 | 253 | |
| LNC860S-4T1600G/4T2000P | 160 | 307 | 300 | |
| LNC860S-4T2000G/4T2200P | 200 | 385 | 377 | |
| LNC860S-4T2200G/4T2500P | 220 | 430 | 426 | |
| LNC860S-4T2500G/4T2800P | 250 | 468 | 465 | |
| LNC860S-4T2800G/4T3150P | 280 | 525 | 520 | |
| LNC860S-4T3150G/4T3550P | 315 | 590 | 585 | |
| LNC860S-4T3550G/4T4000P | 350 | 665 | 650 | |
| LNC860S-4T4000G/4T4500P | 400 | 785 | 725 | |
| LNC860S-4T4500G/4T5000P | 450 | 823 | 820 | |
| LNC860S-4T5000G/4T5600P | 500 | 883 | 875 | |
| LNC860S-4T5600G/4T6300P | 560 | 920 | 980 | |
| LNC860S-4T6300G/4T7100P | 630 | 1080 | 1120 | |
| LNC860S-4T7100G/4T7500P | 710 | 1126 | 1283 | |
| LNC860S-4T7500G | 750 | 1250 | 1355 |
