Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 11KW |
| Nominal Voltage | 380V | Number of Phases | Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC860S-4T0110GB/4T0150PB | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

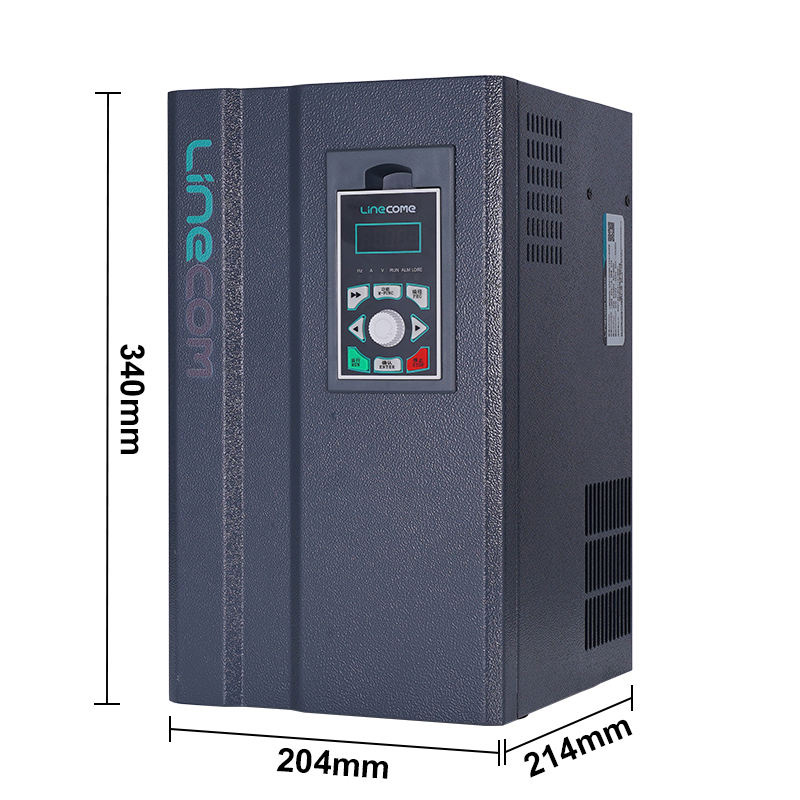

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 340*204*214mm |
| IP Rating | IP20 | Installation Dimensions | 150*325mm |
| Weight | 4.3kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |
| Name | Vector Frequency Converter |
| Model | LNC860S-4T0110GB/4T0150PB |
| Brand | LINECOME |
| Material | Iron Shell |
| Color | Grey |
| Power Range | 11kW |
| Input Voltage | Three phase 380V |
| Output Voltage | Three phase 380V |
| Output frequency | 0-500Hz |
| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC860S-2S0007GB/2S0015PB | Single Phase 220V±15% /Three Phase 220V±15% | 0.75 | 8.2 | 4 |
| LNC860S-2S0015GB/2S0022PB | 1.5 | 14 | 7 | |
| LNC860S-2S0022GB/2S0040PB | 2.2 | 23 | 9.6 | |
| LNC860S-4T0007GB/4T0015PB | Three Phase 380V±15% /Three Phase 380V±15% | 0.75 | 3.4 | 2.1 |
| LNC860S-4T0015GB/4T0022PB | 1.5 | 5 | 3.8 | |
| LNC860S-4T0022GB/4T0040PB | 2.2 | 5.8 | 5.1 | |
| LNC860S-4T0040GB/4T0055PB | 4 | 10 | 9 | |
| LNC860S-4T0055GB/4T0075PB | 5.5 | 15 | 13 | |
| LNC860S-4T0075GB/4T0110PB | 7.5 | 20 | 17 | |
| LNC860S-4T0110GB/4T0150PB | 11 | 26 | 25 | |
| LNC860S-4T0150GB/4T0185PB | 15 | 35 | 32 | |
| LNC860S-4T0185GB/4T0220PB | 18.5 | 38 | 37 | |
| LNC860S-4T0220GB/4T0300PB | 22 | 46 | 45 | |
| LNC860S-4T0300G/4T0370P | 30 | 62 | 60 | |
| LNC860S-4T0370G/4T0450P | 37 | 76 | 75 | |
| LNC860S-4T0450G/4T0550P | 45 | 92 | 91 | |
| LNC860S-4T0550G/4T0750P | 55 | 113 | 112 | |
| LNC860S-4T0750G/4T0900P | 75 | 157 | 150 | |
| LNC860S-4T0900G/4T1100P | 90 | 180 | 176 | |
| LNC860S-4T1100G/4T1320P | 110 | 214 | 210 | |
| LNC860S-4T1320G/4T1600P | 132 | 256 | 253 | |
| LNC860S-4T1600G/4T2000P | 160 | 307 | 300 | |
| LNC860S-4T2000G/4T2200P | 200 | 385 | 377 | |
| LNC860S-4T2200G/4T2500P | 220 | 430 | 426 | |
| LNC860S-4T2500G/4T2800P | 250 | 468 | 465 | |
| LNC860S-4T2800G/4T3150P | 280 | 525 | 520 | |
| LNC860S-4T3150G/4T3550P | 315 | 590 | 585 | |
| LNC860S-4T3550G/4T4000P | 350 | 665 | 650 | |
| LNC860S-4T4000G/4T4500P | 400 | 785 | 725 | |
| LNC860S-4T4500G/4T5000P | 450 | 823 | 820 | |
| LNC860S-4T5000G/4T5600P | 500 | 883 | 875 | |
| LNC860S-4T5600G/4T6300P | 560 | 920 | 980 | |
| LNC860S-4T6300G/4T7100P | 630 | 1080 | 1120 | |
| LNC860S-4T7100G/4T7500P | 710 | 1126 | 1283 | |
| LNC860S-4T7500G | 750 | 1250 | 1355 |
