Feature highlights: The LNC860S Frequency Inverter VFD is a versatile single-phase 220V input, three-phase 220V output device with a 2.2kW power range and 0-500Hz output frequency. It supports industrial motor speed control applications like pumps and compressors. Certified with CE, it ensures compliance with EU safety standards, offering market access and enhanced buyer confidence.
Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 2.2KW |
| Nominal Voltage | 220V | Number of Phases | Single Phase, Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC860S-2S0022GB/2S0040PB | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

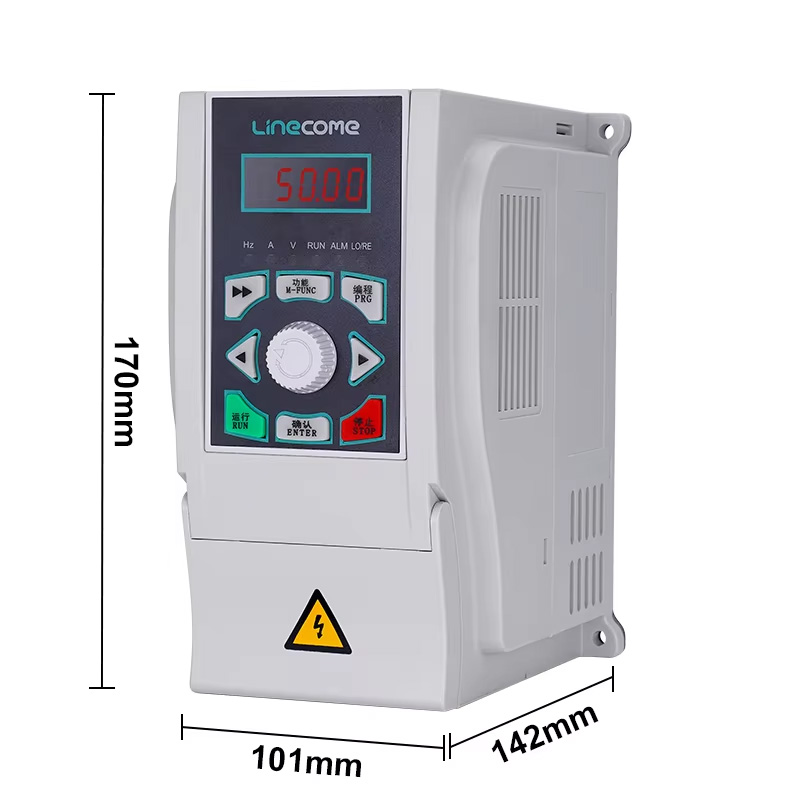

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 170*101*142mm |
| IP Rating | IP20 | Installation Dimensions | 90*157mm |
| Weight | 1.6kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |
| Name | Vector Frequency Converter |
| Model | LNC860S-2S0022GB/2S0040PB |
| Brand | LINECOME |
| Material | PC+ABS |
| Color | White grey |
| Power Range | 2.2kW |
| Input Voltage | Single phase 220V |
| Output Voltage | Three phase 220V |
| Output frequency | 0-500Hz |
| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC860S-2S0007GB/2S0015PB | Single Phase 220V±15% /Three Phase 220V±15% | 0.75 | 8.2 | 4 |
| LNC860S-2S0015GB/2S0022PB | 1.5 | 14 | 7 | |
| LNC860S-2S0022GB/2S0040PB | 2.2 | 23 | 9.6 | |
| LNC860S-4T0007GB/4T0015PB | Three Phase 380V±15% /Three Phase 380V±15% | 0.75 | 3.4 | 2.1 |
| LNC860S-4T0015GB/4T0022PB | 1.5 | 5 | 3.8 | |
| LNC860S-4T0022GB/4T0040PB | 2.2 | 5.8 | 5.1 | |
| LNC860S-4T0040GB/4T0055PB | 4 | 10 | 9 | |
| LNC860S-4T0055GB/4T0075PB | 5.5 | 15 | 13 | |
| LNC860S-4T0075GB/4T0110PB | 7.5 | 20 | 17 | |
| LNC860S-4T0110GB/4T0150PB | 11 | 26 | 25 | |
| LNC860S-4T0150GB/4T0185PB | 15 | 35 | 32 | |
| LNC860S-4T0185GB/4T0220PB | 18.5 | 38 | 37 | |
| LNC860S-4T0220GB/4T0300PB | 22 | 46 | 45 | |
| LNC860S-4T0300G/4T0370P | 30 | 62 | 60 | |
| LNC860S-4T0370G/4T0450P | 37 | 76 | 75 | |
| LNC860S-4T0450G/4T0550P | 45 | 92 | 91 | |
| LNC860S-4T0550G/4T0750P | 55 | 113 | 112 | |
| LNC860S-4T0750G/4T0900P | 75 | 157 | 150 | |
| LNC860S-4T0900G/4T1100P | 90 | 180 | 176 | |
| LNC860S-4T1100G/4T1320P | 110 | 214 | 210 | |
| LNC860S-4T1320G/4T1600P | 132 | 256 | 253 | |
| LNC860S-4T1600G/4T2000P | 160 | 307 | 300 | |
| LNC860S-4T2000G/4T2200P | 200 | 385 | 377 | |
| LNC860S-4T2200G/4T2500P | 220 | 430 | 426 | |
| LNC860S-4T2500G/4T2800P | 250 | 468 | 465 | |
| LNC860S-4T2800G/4T3150P | 280 | 525 | 520 | |
| LNC860S-4T3150G/4T3550P | 315 | 590 | 585 | |
| LNC860S-4T3550G/4T4000P | 350 | 665 | 650 | |
| LNC860S-4T4000G/4T4500P | 400 | 785 | 725 | |
| LNC860S-4T4500G/4T5000P | 450 | 823 | 820 | |
| LNC860S-4T5000G/4T5600P | 500 | 883 | 875 | |
| LNC860S-4T5600G/4T6300P | 560 | 920 | 980 | |
| LNC860S-4T6300G/4T7100P | 630 | 1080 | 1120 | |
| LNC860S-4T7100G/4T7500P | 710 | 1126 | 1283 | |
| LNC860S-4T7500G | 750 | 1250 | 1355 |
