Feature highlights: This 0.75kW VFD supports three-phase 220V input output, with a wide output frequency range of 0-500Hz for versatile motor and compressor applications. It features an IP20 protection level, LED display, and customizable options to meet specific industrial needs. Certified by CE, it ensures compliance with EU safety standards, providing market access and reliability assurance for global buyers.
Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 0.75KW |
| Nominal Voltage | 220V | Number of Phases | Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC820-2T0007GB/2T0015PB | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

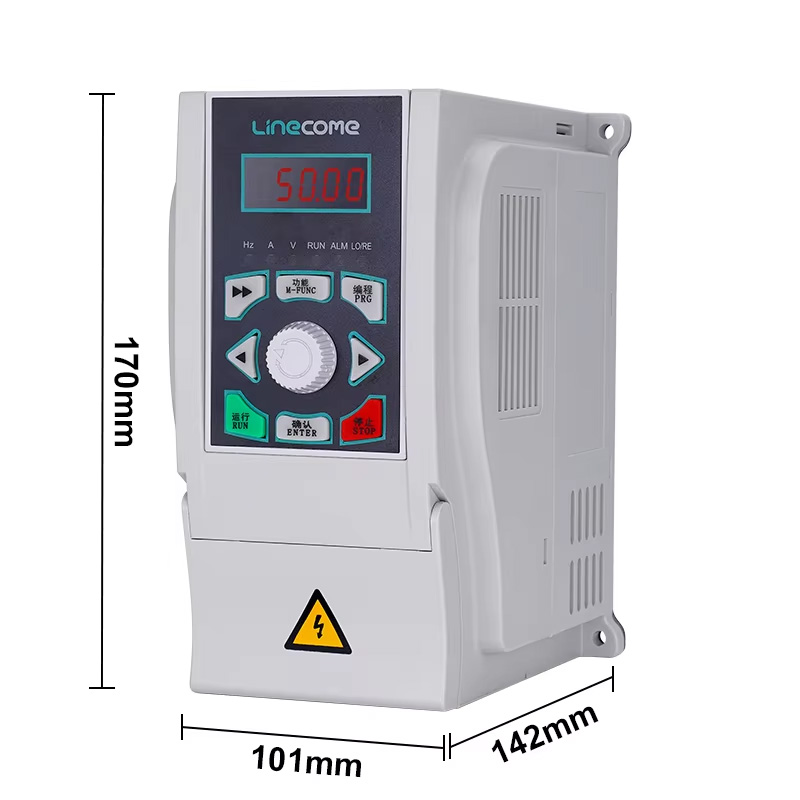

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 170*101*142mm |
| IP Rating | IP20 | Installation Dimensions | 90*157mm |
| Weight | 1.6kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |
| Name | General-purpose Frequency Converter |
| Model | LNC820-2T0007GB/2T0015PB |
| Brand | LINECOME |
| Material | PC+ABS |
| Color | White grey |
| Power Range | 0.75kW |
| Input Voltage | Three phase 220V |
| Output Voltage | Three phase 220V |
| Output frequency | 0-500Hz |
| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC820-2S0007GB/2S0015PB | Single Phase 220V±15% /Three Phase 220V±15% | 0.75 | 8.2 | 4 |
| LNC820-2S0015GB/2S0022PB | 1.5 | 14 | 7 | |
| LNC820-2S0022GB/2S0040PB | 2.2 | 23 | 9.6 | |
| LNC820-2S0040GB/2S0055PB | 4 | 20 | 17 | |
| LNC820-2S0055GB/2S0075PB | 5.5 | 26 | 25 | |
| LNC820-2T0007GB/2T0015PB | Three Phase 220V±15% /Three Phase 220V±15% | 0.75 | 5 | 3.8 |
| LNC820-2T0015GB/2T0022PB | 1.5 | 5.8 | 5.1 | |
| LNC820-2T0022GB/2T0040PB | 2.2 | 10.5 | 9 | |
| LNC820-2T0040GB/2T0055PB | 4 | 14.6 | 13 | |
| LNC820-2T0055GB/2T0075PB | 5.5 | 26 | 25 | |
| LNC820-2T0075GB/2T0110PB | 7.5 | 35 | 32 | |
| LNC820-2T0110GB/2T0150PB | 11 | 46.5 | 45 | |
| LNC820-2T0150G/2T0185P | 15 | 62 | 60 | |
| LNC820-2T0185G/2T0220P | 18.5 | 76 | 75 | |
| LNC820-2T0220G/2T0300P | 22 | 92 | 91 | |
| LNC820-2T0300G/2T0370P | 30 | 113 | 112 | |
| LNC820-2T0370G/2T0450P | 37 | 157 | 150 | |
| LNC820-2T0450G/2T0550P | 45 | 180 | 176 | |
| LNC820-2T0550G/2T0750P | 55 | 214 | 210 | |
| LNC820-2T0750G/2T0900P | 75 | 307 | 304 | |
| LNC820-4T0007GB/4T0015PB | Three Phase 380V±15% /Three Phase 380V±15% | 0.75 | 3.4 | 2.1 |
| LNC820-4T0015GB/4T0022PB | 1.5 | 5 | 3.8 | |
| LNC820-4T0022GB/4T0040PB | 2.2 | 5.8 | 5.1 | |
| LNC820-4T0040GB/4T0055PB | 4 | 10 | 9 | |
| LNC820-4T0055GB/4T0075PB | 5.5 | 15 | 13 | |
| LNC820-4T0075GB/4T0110PB | 7.5 | 20 | 17 | |
| LNC820-4T0110GB/4T0150PB | 11 | 26 | 25 | |
| LNC820-4T0150GB/4T0185PB | 15 | 35 | 32 | |
| LNC820-4T0185GB/4T0220PB | 18.5 | 38 | 37 | |
| LNC820-4T0220GB/4T0300PB | 22 | 46 | 45 | |
| LNC820-4T0300G/4T0370P | 30 | 62 | 60 | |
| LNC820-4T0370G/4T0450P | 37 | 76 | 75 | |
| LNC820-4T0450G/4T0550P | 45 | 92 | 91 | |
| LNC820-4T0550G/4T0750P | 55 | 113 | 112 | |
| LNC820-4T0750G/4T0900P | 75 | 157 | 150 | |
| LNC820-4T0900G/4T1100P | 90 | 180 | 176 | |
| LNC820-4T1100G/4T1320P | 110 | 214 | 210 | |
| LNC820-4T1320G/4T1600P | 132 | 256 | 253 | |
| LNC820-4T1600G/4T2000P | 160 | 307 | 300 | |
| LNC820-4T2000G/4T2200P | 200 | 385 | 377 | |
| LNC820-4T2200G/4T2500P | 220 | 430 | 426 | |
| LNC820-4T2500G/4T2800P | 250 | 468 | 465 | |
| LNC820-4T2800G/4T3150P | 280 | 525 | 520 | |
| LNC820-4T3150G/4T3550P | 315 | 590 | 585 | |
| LNC820-4T3550G/4T4000P | 350 | 665 | 650 | |
| LNC820-4T4000G/4T4500P | 400 | 785 | 725 |
