Feature highlights: This 400KW 3-phase 380V AC drive industrial vector variable frequency converter offers precise motor speed control and wide output frequency range (0-500Hz), suitable for industrial automation, pumps, compressors, and more. With CE certification ensuring compliance with EU safety standards and providing market access, it supports versatile applications like water pumps, conveyor belts, and CNC lathes. The IP20-rated design and 18-month warranty ensure reliability and durability.
Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 400KW |
| Nominal Voltage | 380V | Number of Phases | Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |

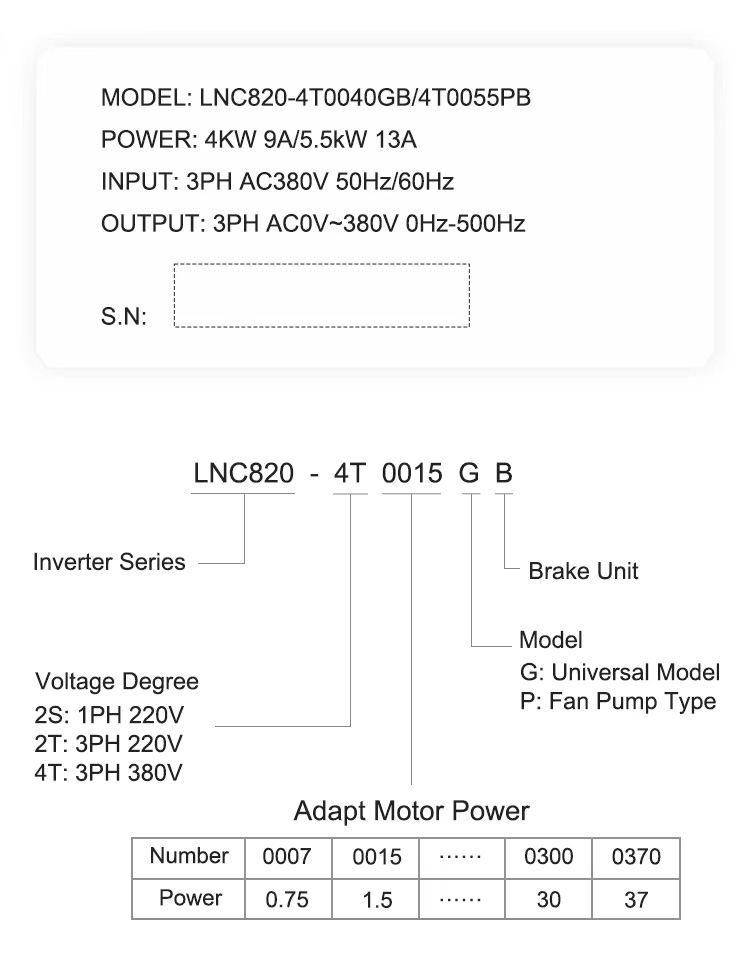

| Model Number | LNC820-4T4000G/4T4500P | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

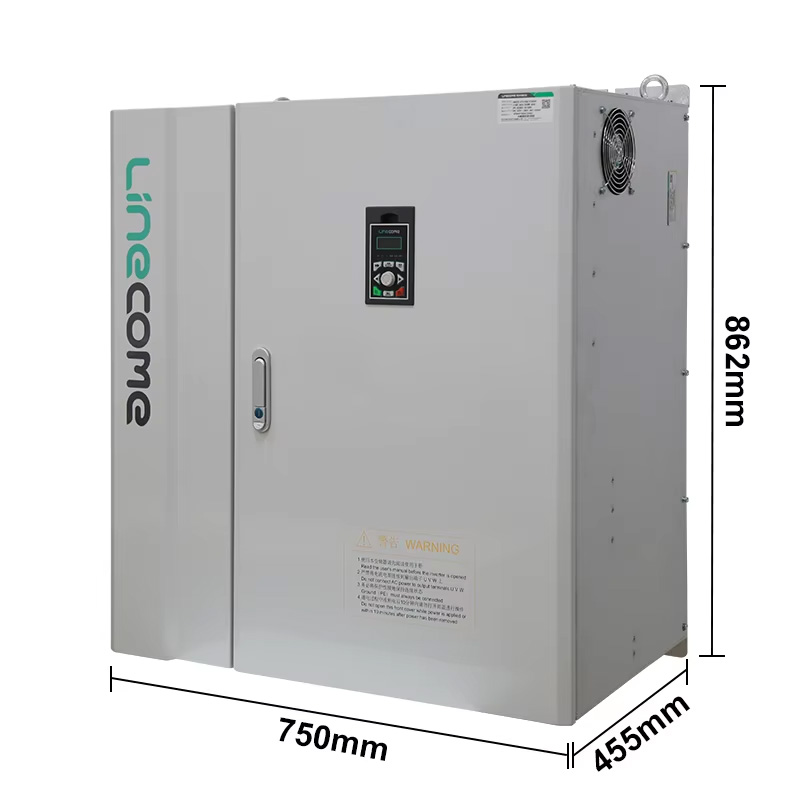

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 862*750*455mm |
| IP Rating | IP20 | Installation Dimensions | 500*832mm |
| Weight | 159kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |

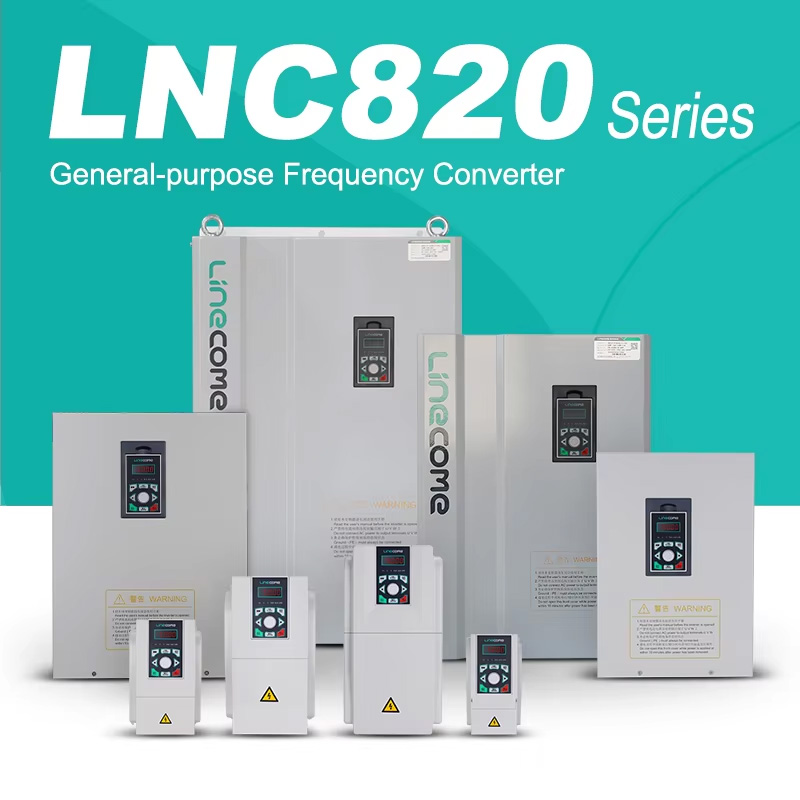

| Name | General-purpose Frequency Converter |
| Model | LNC820-4T4000G/4T4500P |
| Brand | LINECOME |
| Material | Iron |
| Color | White grey |
| Power Range | 400kW |
| Input Voltage | Three phase 380V |
| Output Voltage | Three phase 380V |
| Output frequency | 0-500Hz |
| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC820-2S0007GB/2S0015PB | Single Phase 220V±15% /Three Phase 220V±15% | 0.75 | 8.2 | 4 |
| LNC820-2S0015GB/2S0022PB | 1.5 | 14 | 7 | |
| LNC820-2S0022GB/2S0040PB | 2.2 | 23 | 9.6 | |
| LNC820-2S0040GB/2S0055PB | 4 | 20 | 17 | |
| LNC820-2S0055GB/2S0075PB | 5.5 | 26 | 25 | |
| LNC820-2T0007GB/2T0015PB | Three Phase 220V±15% /Three Phase 220V±15% | 0.75 | 5 | 3.8 |
| LNC820-2T0015GB/2T0022PB | 1.5 | 5.8 | 5.1 | |
| LNC820-2T0022GB/2T0040PB | 2.2 | 10.5 | 9 | |
| LNC820-2T0040GB/2T0055PB | 4 | 14.6 | 13 | |
| LNC820-2T0055GB/2T0075PB | 5.5 | 26 | 25 | |
| LNC820-2T0075GB/2T0110PB | 7.5 | 35 | 32 | |
| LNC820-2T0110GB/2T0150PB | 11 | 46.5 | 45 | |
| LNC820-2T0150G/2T0185P | 15 | 62 | 60 | |
| LNC820-2T0185G/2T0220P | 18.5 | 76 | 75 | |
| LNC820-2T0220G/2T0300P | 22 | 92 | 91 | |
| LNC820-2T0300G/2T0370P | 30 | 113 | 112 | |
| LNC820-2T0370G/2T0450P | 37 | 157 | 150 | |
| LNC820-2T0450G/2T0550P | 45 | 180 | 176 | |
| LNC820-2T0550G/2T0750P | 55 | 214 | 210 | |
| LNC820-2T0750G/2T0900P | 75 | 307 | 304 | |
| LNC820-4T0007GB/4T0015PB | Three Phase 380V±15% /Three Phase 380V±15% | 0.75 | 3.4 | 2.1 |
| LNC820-4T0015GB/4T0022PB | 1.5 | 5 | 3.8 | |
| LNC820-4T0022GB/4T0040PB | 2.2 | 5.8 | 5.1 | |
| LNC820-4T0040GB/4T0055PB | 4 | 10 | 9 | |
| LNC820-4T0055GB/4T0075PB | 5.5 | 15 | 13 | |
| LNC820-4T0075GB/4T0110PB | 7.5 | 20 | 17 | |
| LNC820-4T0110GB/4T0150PB | 11 | 26 | 25 | |
| LNC820-4T0150GB/4T0185PB | 15 | 35 | 32 | |
| LNC820-4T0185GB/4T0220PB | 18.5 | 38 | 37 | |
| LNC820-4T0220GB/4T0300PB | 22 | 46 | 45 | |
| LNC820-4T0300G/4T0370P | 30 | 62 | 60 | |
| LNC820-4T0370G/4T0450P | 37 | 76 | 75 | |
| LNC820-4T0450G/4T0550P | 45 | 92 | 91 | |
| LNC820-4T0550G/4T0750P | 55 | 113 | 112 | |
| LNC820-4T0750G/4T0900P | 75 | 157 | 150 | |
| LNC820-4T0900G/4T1100P | 90 | 180 | 176 | |
| LNC820-4T1100G/4T1320P | 110 | 214 | 210 | |
| LNC820-4T1320G/4T1600P | 132 | 256 | 253 | |
| LNC820-4T1600G/4T2000P | 160 | 307 | 300 | |
| LNC820-4T2000G/4T2200P | 200 | 385 | 377 | |
| LNC820-4T2200G/4T2500P | 220 | 430 | 426 | |
| LNC820-4T2500G/4T2800P | 250 | 468 | 465 | |
| LNC820-4T2800G/4T3150P | 280 | 525 | 520 | |
| LNC820-4T3150G/4T3550P | 315 | 590 | 585 | |
| LNC820-4T3550G/4T4000P | 350 | 665 | 650 | |
| LNC820-4T4000G/4T4500P | 400 | 785 | 725 |
