Feature highlights: This 7.5kW VFD inverter supports three-phase 380V input output, with a wide output frequency range of 0-500Hz, suitable for motor and compressor applications. It features an IP20 protection level, LED display, and customizable options. Certified by CE, it ensures compliance with EU safety standards, offering market access and reliability assurance.
Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 7.5KW |
| Nominal Voltage | 380V | Number of Phases | Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC820-4T0075GB/4T0110PB | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

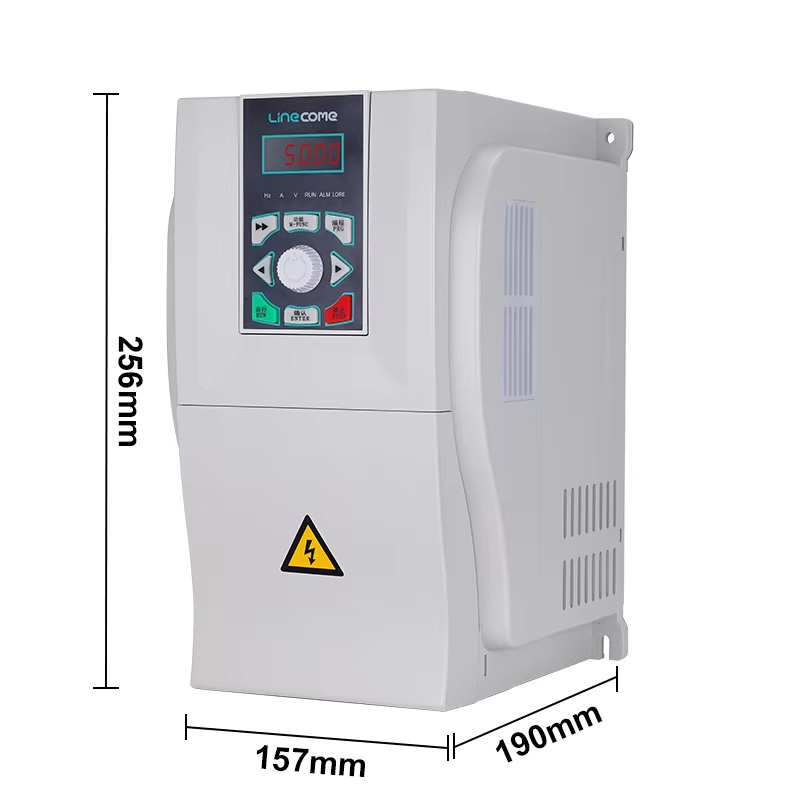

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 256*157*190mm |
| IP Rating | IP20 | Installation Dimensions | 137*237mm |
| Weight | 4.3kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |
| Name | General-purpose Frequency Converter |
| Model | LNC820-4T0075GB/4T0110PB |
| Brand | LINECOME |
| Material | PC+ABS |
| Color | White grey |
| Power Range | 7.5kW |
| Input Voltage | Three phase 380V |
| Output Voltage | Three phase 380V |
| Output frequency | 0-500Hz |
| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC820-2S0007GB/2S0015PB | Single Phase 220V±15% /Three Phase 220V±15% | 0.75 | 8.2 | 4 |
| LNC820-2S0015GB/2S0022PB | 1.5 | 14 | 7 | |
| LNC820-2S0022GB/2S0040PB | 2.2 | 23 | 9.6 | |
| LNC820-2S0040GB/2S0055PB | 4 | 20 | 17 | |
| LNC820-2S0055GB/2S0075PB | 5.5 | 26 | 25 | |
| LNC820-2T0007GB/2T0015PB | Three Phase 220V±15% /Three Phase 220V±15% | 0.75 | 5 | 3.8 |
| LNC820-2T0015GB/2T0022PB | 1.5 | 5.8 | 5.1 | |
| LNC820-2T0022GB/2T0040PB | 2.2 | 10.5 | 9 | |
| LNC820-2T0040GB/2T0055PB | 4 | 14.6 | 13 | |
| LNC820-2T0055GB/2T0075PB | 5.5 | 26 | 25 | |
| LNC820-2T0075GB/2T0110PB | 7.5 | 35 | 32 | |
| LNC820-2T0110GB/2T0150PB | 11 | 46.5 | 45 | |
| LNC820-2T0150G/2T0185P | 15 | 62 | 60 | |
| LNC820-2T0185G/2T0220P | 18.5 | 76 | 75 | |
| LNC820-2T0220G/2T0300P | 22 | 92 | 91 | |
| LNC820-2T0300G/2T0370P | 30 | 113 | 112 | |
| LNC820-2T0370G/2T0450P | 37 | 157 | 150 | |
| LNC820-2T0450G/2T0550P | 45 | 180 | 176 | |
| LNC820-2T0550G/2T0750P | 55 | 214 | 210 | |
| LNC820-2T0750G/2T0900P | 75 | 307 | 304 | |
| LNC820-4T0007GB/4T0015PB | Three Phase 380V±15% /Three Phase 380V±15% | 0.75 | 3.4 | 2.1 |
| LNC820-4T0015GB/4T0022PB | 1.5 | 5 | 3.8 | |
| LNC820-4T0022GB/4T0040PB | 2.2 | 5.8 | 5.1 | |
| LNC820-4T0040GB/4T0055PB | 4 | 10 | 9 | |
| LNC820-4T0055GB/4T0075PB | 5.5 | 15 | 13 | |
| LNC820-4T0075GB/4T0110PB | 7.5 | 20 | 17 | |
| LNC820-4T0110GB/4T0150PB | 11 | 26 | 25 | |
| LNC820-4T0150GB/4T0185PB | 15 | 35 | 32 | |
| LNC820-4T0185GB/4T0220PB | 18.5 | 38 | 37 | |
| LNC820-4T0220GB/4T0300PB | 22 | 46 | 45 | |
| LNC820-4T0300G/4T0370P | 30 | 62 | 60 | |
| LNC820-4T0370G/4T0450P | 37 | 76 | 75 | |
| LNC820-4T0450G/4T0550P | 45 | 92 | 91 | |
| LNC820-4T0550G/4T0750P | 55 | 113 | 112 | |
| LNC820-4T0750G/4T0900P | 75 | 157 | 150 | |
| LNC820-4T0900G/4T1100P | 90 | 180 | 176 | |
| LNC820-4T1100G/4T1320P | 110 | 214 | 210 | |
| LNC820-4T1320G/4T1600P | 132 | 256 | 253 | |
| LNC820-4T1600G/4T2000P | 160 | 307 | 300 | |
| LNC820-4T2000G/4T2200P | 200 | 385 | 377 | |
| LNC820-4T2200G/4T2500P | 220 | 430 | 426 | |
| LNC820-4T2500G/4T2800P | 250 | 468 | 465 | |
| LNC820-4T2800G/4T3150P | 280 | 525 | 520 | |
| LNC820-4T3150G/4T3550P | 315 | 590 | 585 | |
| LNC820-4T3550G/4T4000P | 350 | 665 | 650 | |
| LNC820-4T4000G/4T4500P | 400 | 785 | 725 |
