Feature highlights: This 1.5KW Mini VFD Frequency Converter supports a three-phase 380V input output, with an output frequency range of 0-500Hz, suitable for industrial motor speed control and automation. Certified by CE, it ensures compliance with EU safety standards, offering market access and reliable performance. The product features an IP20 protection level, LED display, and a compact installation size of 65*172mm.
Supplier highlights: Mainly exports to the United States, Malaysia, and Paraguay. They offer full customization, design customization, and sample customization services, and have product certifications.
Key Attributes
| Control Mode | V/F | Rated Power | 1.5KW |
| Nominal Voltage | 380V | Number of Phases | Single Phase, Three Phase |
| Place of Origin | Jiangsu, China | Brand Name | Linecome |
| Model Number | LNC500M-4T0015G | Type | frequency converter, VFD, Universal AC Drive, AC Drive, AC-DC-AC Variable-Frequency Drive |

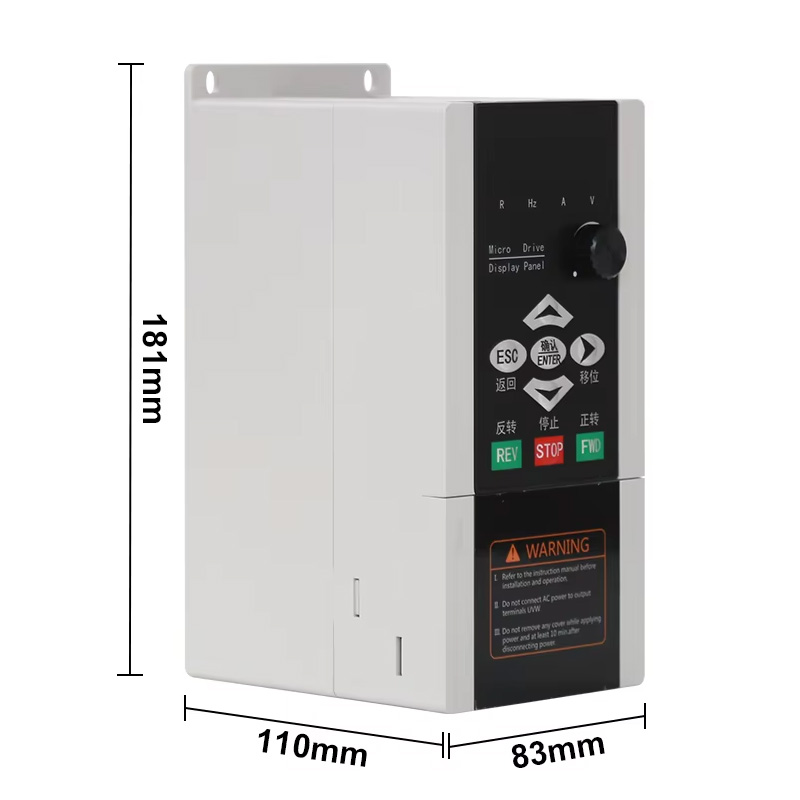

| Application | motor, Pumps, Compressor, AC Motor, Industrial Equipment, Industrial Automation, blowers, motor speed control | Size | 181*83*110mm |
| IP Rating | IP20 | Installation Dimensions | 65*172mm |
| Weight | 1kg | Output Frequency | 0-500Hz |
| Certification | CE, ISO | Customizable | Yes |
| Warranty | 18 months | OEM | Accepted |
| Shipping Methods | Air; Express; Sea | MOQ | 1pcs |
| Display | LED Display |
| Name | Economic Frequency Converter |
| Model | LNC500M-4T0015G |
| Brand | LINECOME |
| Material | PC+ABS |
| Color | White grey+Black |
| Power Range | 1.5kW |
| Input Voltage | Single phase 380V |
| Output Voltage | Three phase 380V |
| Output frequency | 0-500Hz |

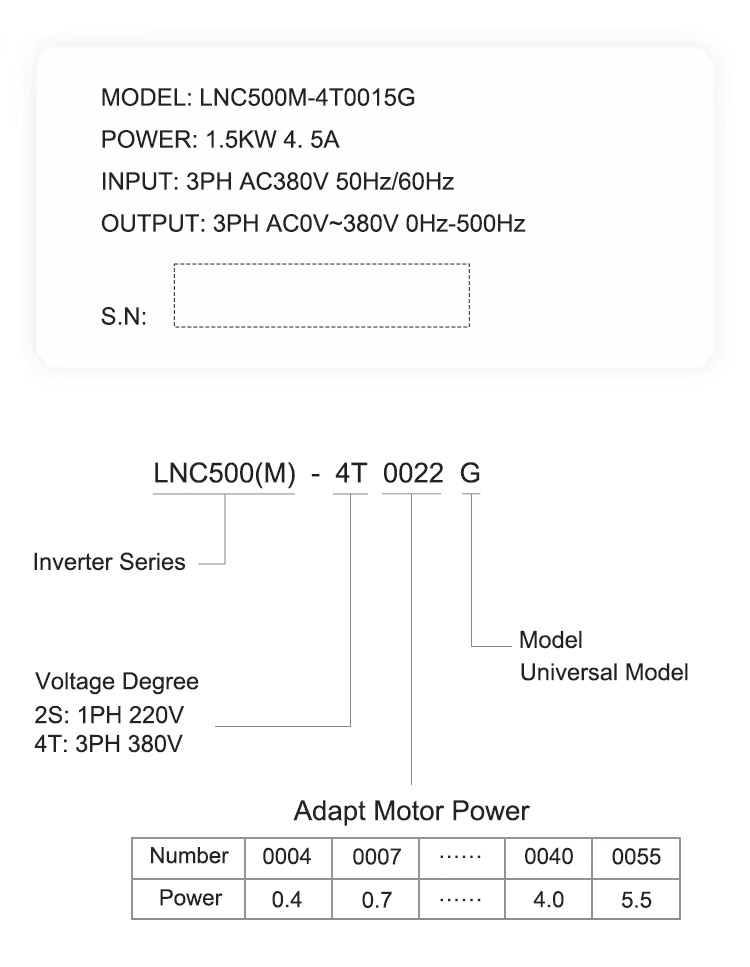

| Model | Input/Output Voltage (V) | Rated Power (kW) | Rated Input Current (A) | Rated Output Current (A) |
| LNC500M-2S0007G | Single Phase 220V±15% /Three Phase 220V±15% | 0.75 | 8.2 | 5 |
| LNC500M-2S0015G | 1.5 | 14 | 7 | |
| LNC500M-2S0022G | 2.2 | 23 | 10 | |
| LNC500M-4T0007G | Three Phase 380V±15% /Three Phase 380V±15% | 0.75 | 3.4 | 3 |
| LNC500M-4T0015G | 1.5 | 5 | 4.5 | |
| LNC500M-4T0022G | 2.2 | 5.8 | 5.5 | |
| LNC500M-4T0040G | 4 | 10.5 | 9 | |
| LNC500-2S0040G | Single Phase 220V±15% /Three Phase 220V±15% | 4 | 34 | 16 |
| LNC500-2S0055G | 5.5 | 47 | 19 | |
| LNC500-4T0055G | Three Phase 380V±15% /Three Phase 380V±15% | 5.5 | 14.6 | 13 |
| LNC500-4T0075G | 7.5 | 20.5 | 16 | |
| LNC500-4T0110G | 11 | 26 | 25 | |
| LNC500-4T0150G | 15 | 35 | 30 | |
| LNC500-4T0185G | 18.5 | 38.5 | 39 | |
| LNC500-4T0220G | 22 | 46.5 | 45 | |
| LNC500-4T0300G | 30 | 62 | 60 | |
| LNC500-4T0370G | 37 | 76 | 75 | |
| LNC500-4T0450G | 45 | 92 | 91 | |
| LNC500-4T0550G | 55 | 113 | 112 | |
| LNC500-4T0750G | 75 | 157 | 150 | |
| LNC500-4T0900G | 90 | 180 | 176 | |
| LNC500-4T1100G | 110 | 214 | 210 | |
| LNC500-4T1320G | 132 | 256 | 260 | |
| LNC500-ST0007G | Single Phase 220V±15% /Three Phase 380V±15% | 0.75 | 5 | 3 |
| LNC500-ST0015G | 1.5 | 10 | 4.5 | |
| LNC500-ST0022G | 2.2 | 15 | 5.5 | |
| LNC500-ST0040G | 4 | 27 | 9 | |
| LNC500-ST0055G | 5.5 | 37 | 13 | |
| LNC500-ST0075G | 7.5 | 51 | 16 | |
| LNC500-ST0110G | 11 | 75 | 25 | |
| LNC500-ST0150G | 15 | 102 | 30 | |
| LNC500-ST0220G | 22 | 150 | 39 | |
| LNC500-ST0300G | 30 | 204 | 45 | |
| LNC500-ST0370G | - | - | - | |
| LNC500-ST0450G | - | - | - |
